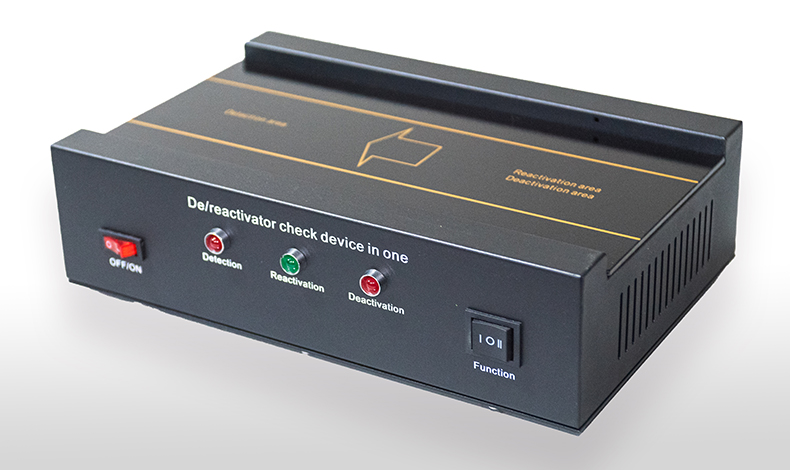

Name: Integrated charging, discharging, and testing machine
Model: CXJ-1 Brand: Wu Yang
Function:
This machine is a body machine, divided into two parts, each part can work independently. Divided by the center of the arrow, the left side is the magnetic stripe detection area, and the right side is the magnetic stripe charging and erasing area. If only the magnetic stripe is detected, the charging and discharging switch can be set to the middle position, and then the power switch can be turned on. Slide the item to be inspected tightly against the glass in the direction of the arrow within the effective working surface. Items with magnetic stripes will emit a continuous alarm sound, while items without alarm grids indicate that the magnetic stripe E has been desensitized or damaged. The placement position of the all-in-one machine should be at least 2 meters away from the detection door. Magnetic strips, mobile phones, watches, and other items that are sensitive to magnetization should be kept away from the magnetic strip charging and discharging detection all-in-one machine at work
Working voltage: AC: 22V ± 10%, 50Hz
Detection power consumption: ≤ 10W Charging power: ≤ 95W
Disinfection power: ≤ 95W Weight: 8.4KG
Size: 336 * 222 * 91mm
Magnetic stripe detection height: ≤ 20mm
Alarm form: sound, flashing light
